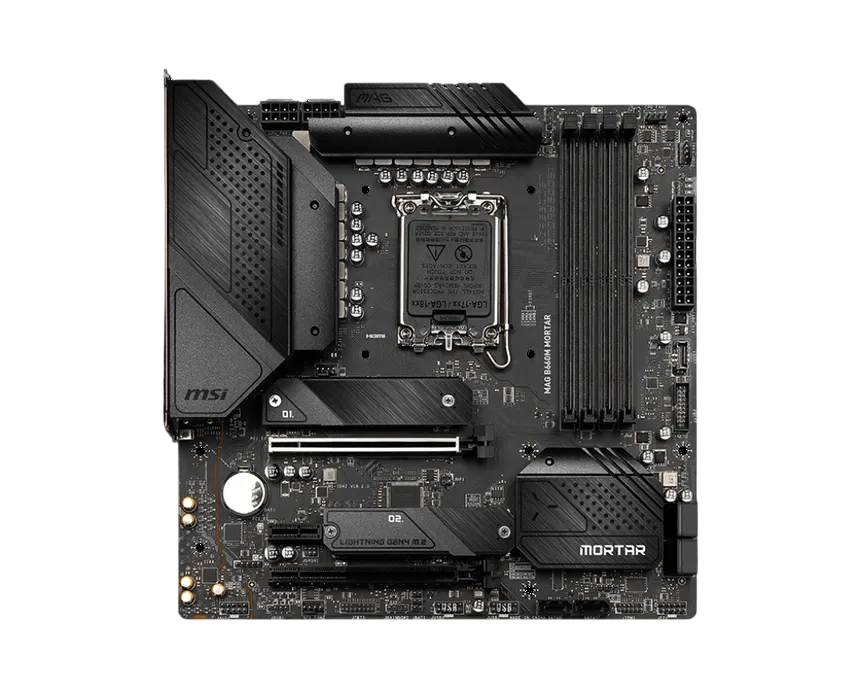

Core Specifications
-
Socket: LGA 1700
-
Chipset: Intel B660
-
Form Factor: Micro-ATX (24.4 cm x 24.4 cm)
-
CPU Support: Intel 12th, 13th, and 14th Gen Core, Pentium Gold, and Celeron processors
-
VRM: 14-phase power design (12+1+1), with 60A MOSFETs for Vcore
Memory
-
DIMM Slots: 4 x DDR4
-
Max Capacity: 128 GB
-
Max Speed: Up to 5333+ MHz (OC), depending on configuration (1DPC/2DPC, 1R/2R)
-
Features: Dual-channel support, Intel XMP support
Expansion Slots
-
PCIe x16:
-
1 x PCIe 4.0 x16 (from CPU)
-
1 x PCIe 3.0 x4 (from chipset, shares bandwidth)
-
-
PCIe x1: 1 x PCIe 3.0 x1
-
Multi-GPU: Supports AMD CrossFire (no SLI)
Storage
-
M.2 Slots:
-
M2_1 (CPU): PCIe 4.0 x4, supports 2242/2260/2280
-
M2_2 (Chipset): PCIe 4.0 x4, SATA support, Intel Optane ready
-
-
SATA Ports: 6 x SATA III (6 Gbps), RAID 0/1/5/10 support
-
Note: SATA8 disabled when M.2 SATA SSD is installed in M2_2
Rear I/O Ports
-
USB:
-
1 x USB 3.2 Gen 2×2 (20 Gbps, Type-C)
-
3 x USB 3.2 Gen 2 (10 Gbps, Type-A)
-
4 x USB 2.0
-
-
Video:
-
1 x HDMI 2.1 (4K@60Hz)
-
1 x DisplayPort 1.4 (4K@60Hz)
-
-
Networking:
-
1 x 2.5 GbE LAN (Realtek RTL8125)
-
Wi-Fi 6 (Intel AX201, 2.4/5 GHz) + Bluetooth 5.2
-
-
Audio: 5 x 3.5mm jacks + Optical S/PDIF
Internal Headers
-
USB:
-
1 x USB 3.2 Gen 2 Type-C (10 Gbps)
-
1 x USB 3.2 Gen 1 header (supports 2 ports)
-
2 x USB 2.0 headers (supports 4 ports)
-
-
Fan/Pump: 1 x CPU (4-pin), 1 x Pump (4-pin), 2 x System (4-pin)
-
RGB: 1 x 4-pin ARGB, 2 x 3-pin RAINBOW (addressable)
-
Power: 1 x 24-pin ATX, 2 x 8-pin CPU
Audio & Diagnostics
-
Audio Codec: Realtek ALC1200 (7.1-channel HD Audio)
-
Diagnostics: 4 x EZ Debug LEDs (CPU, DRAM, VGA, BOOT)
