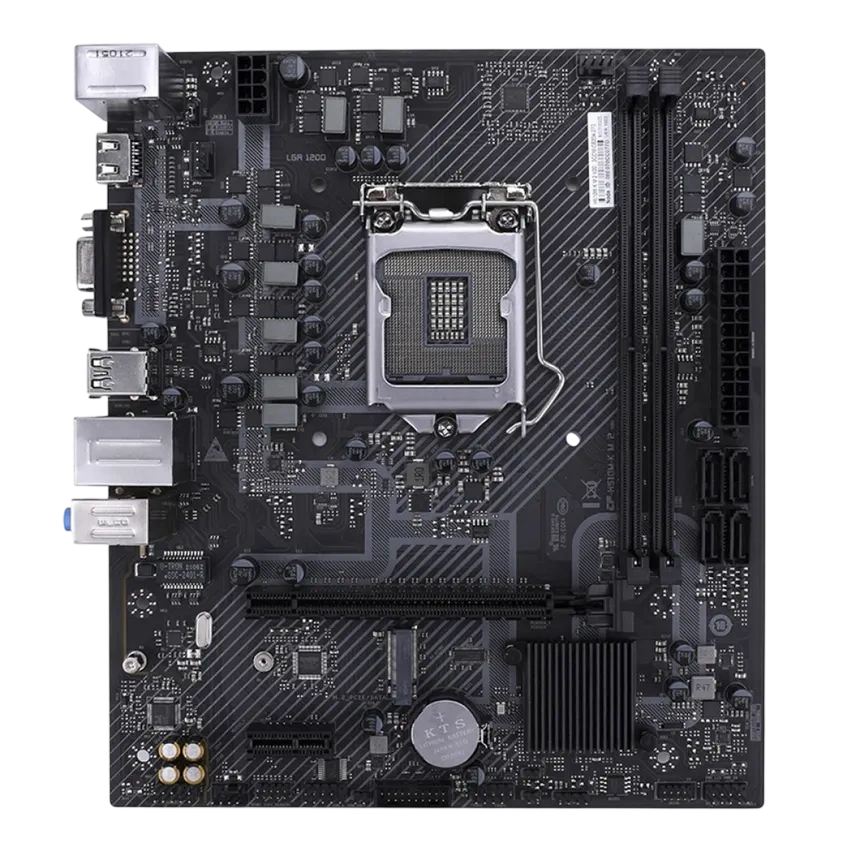

Core Specifications
-
Socket: LGA 1200
-
Chipset: Intel H510
-
Form Factor: Micro-ATX (195 x 225 mm)
-
CPU Support: 10th & 11th Gen Intel Core, Pentium, Celeron
-
VRM: Basic 4+2 phase design (entry-level power delivery)
Memory
-
DIMM Slots: 2 x DDR4
-
Max Capacity: 64 GB
-
Max Speed: Up to 3200 MHz (OC), 2933/2666/2400 MHz (JEDEC)
-
Features: Dual-channel support
Expansion Slots
-
PCIe x16: 1 x PCIe 4.0/3.0 x16 (CPU)
-
PCIe x1: 1 x PCIe 3.0 x1
-
M.2 Slot: 1 x M.2 (2242/2280), supports PCIe Gen3 x4 & SATA SSD
Storage
-
SATA Ports: 4 x SATA III (6 Gbps)
-
Note: M.2 SATA and one SATA port share bandwidth
Rear I/O Ports
-
Video: 1 x HDMI, 1 x VGA
-
USB:
-
2 x USB 3.2 Gen1 (Type-A, 5 Gbps)
-
4 x USB 2.0 (Type-A)
-
-
Networking: 1 x 1000M LAN (RJ45)
-
Audio: 3 x 3.5mm jacks (6-channel HD audio)
-
Other: 1 x PS/2 combo port
Internal Headers
-
USB:
-
1 x USB 3.2 Gen1 (5 Gbps, supports 2 ports)
-
1 x USB 2.0 (supports 2 ports)
-
-
Fan: 1 x CPU fan, 1 x system fan (4-pin)
-
Other: 1 x front panel audio, 1 x front panel connector
Audio & BIOS
-
Audio Codec: 6-Channel High Definition Audio
-
BIOS: 128M UEFI
-
Features: Hardware monitoring (CPU/system temp, fan speed, voltage)
