• +3.3V: 30A / 125W (combined with 5V)

• +5V: 25A / 125W (combined with 3.3V)

• +12V: 133.3A / 1600W (single rail, full PSU capacity)

• -12V: 0.3A / 3.6W

• +5VSB (standby): 3A / 15W

• Total Combined Output: 1600W

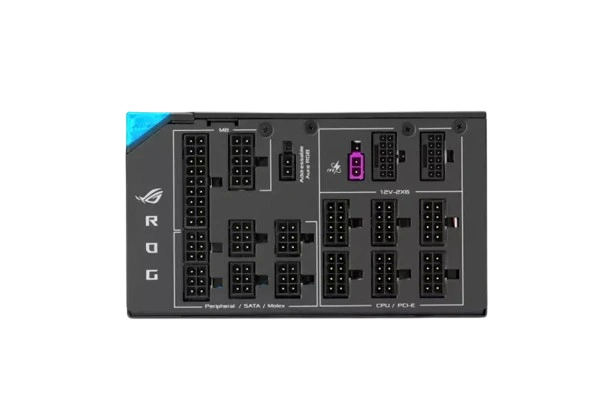

Connectors

• Main Power: 1 x 24/20-pin (MB)

• CPU: 2 x 4+4-pin (EPS)

• PCIe:

  • 2 x 12V-2×6 (16-pin, PCIe 5.1 ready)

  • 4 x 6+2-pin (PCIe)

• Storage:

  • 10 x SATA

  • 9 x Peripheral (Molex)

• Cabling: Fully modular, etched, braided

Advanced Features

• GaN MOSFET Technology: Up to 30% higher efficiency, cooler operation

• GPU-First Voltage Sensing: Patented Intelligent Voltage Stabilizer improves GPU power delivery by up to 45%

• Magnetic OLED Display: Shows real-time power draw; swappable for fan-up/down orientation

• 0dB Technology: Fan shuts off under low load; toggle via rear button

• Turbo Mode: Enhanced cooling for sustained high loads

• Dual-Ball Bearing Fan: F1214025BU (135mm), rated for 80,000 hours

• Aura Sync RGB: Addressable ARGB lighting with multiple effects (Smart, Music, Rainbow, etc.)

• ROG Heatsinks & Aluminum Enclosure: Superior thermal management

Protections

• OVP (Over Voltage), UVP (Under Voltage), OPP (Over Power)

• SCP (Short Circuit), OCP (Over Current), OTP (Over Temperature)

• NLO (No-Load Operation), Inrush & Surge Protection

Additional

• Cybenetics Lambda A+: Ultra-quiet operation (<20 dB on average)

• ATX 3.1 Ready: Supports transient spikes from next-gen GPUs (e.g., RTX 5090
