Core Specifications
-

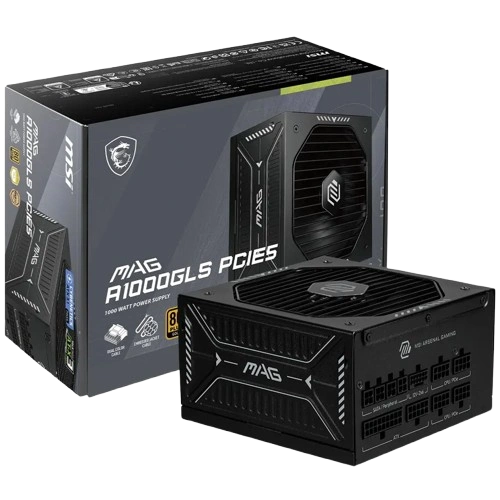

Model: MSI MAG A1000GL PCIE5
-
Form Factor: ATX (150 × 150 × 86 mm)
-
Power Output: 1000W
-
Efficiency: 80 PLUS Gold (up to 90% efficiency)
-
Compliance: ATX 3.1 & PCIe 5.1 Ready
-
Fan: 135 mm Fluid Dynamic Bearing (FDB)
-
MTBF: 150,000 hours
Power & Connectivity
-
Single +12V Rail: 999.6W / 83.3A
-
Input Voltage: 100–240 VAC
-
Modular Design: Fully modular with flat, sleeved cables
-
Main Connectors:
-
1 × 24-pin ATX (motherboard)
-
2 × 4+4-pin EPS (CPU)
-
1 × 16-pin PCIe 5.1 (12V-2×6 / 12VHPWR, up to 600W)
-
4 × 6+2-pin PCIe
-
12 × SATA
-
4 × 4-pin Molex
-
1 × 4-pin FDD
-
Protection & Technology
-
Protections: OVP, OCP, OPP, OTP, SCP, UVP
-
PFC: Active PFC
-
Topology: Full-bridge LLC with DC-to-DC design
-
Peak Power: Up to 2000W (2x excursion support)
