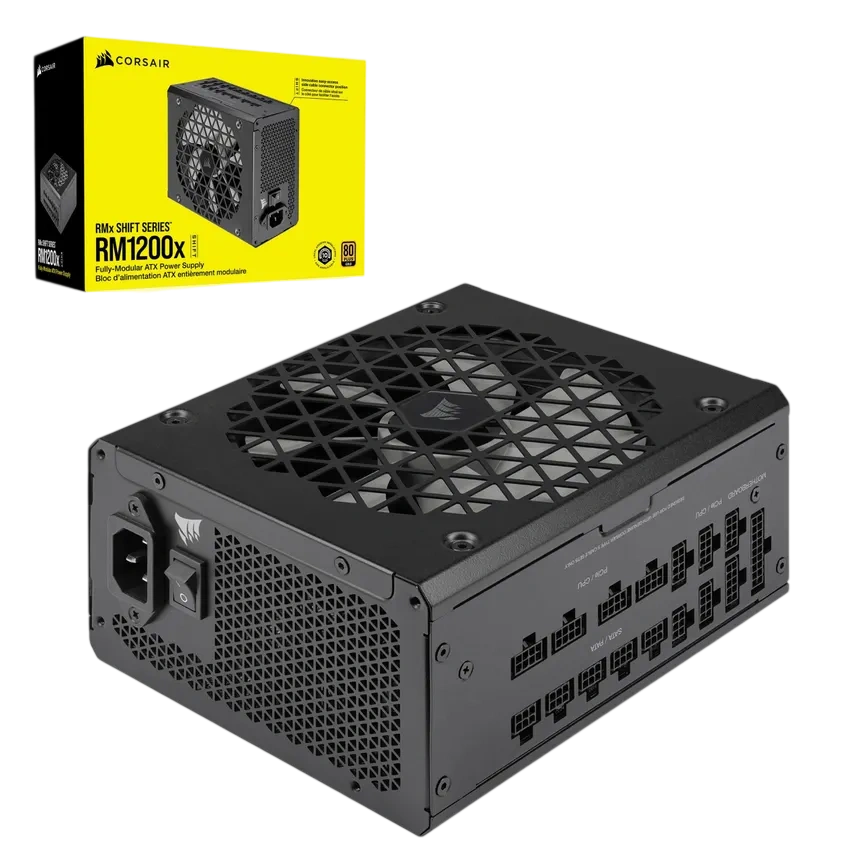

| Model | CP-9020254-NA |
| Wattage | 1200W (Continuous) |
| Efficiency | 80 PLUS Gold, Cybenetics Gold certified (>87% efficiency) |
| Form Factor | ATX 3.1 / ATX 12V v3.0 Compatible |

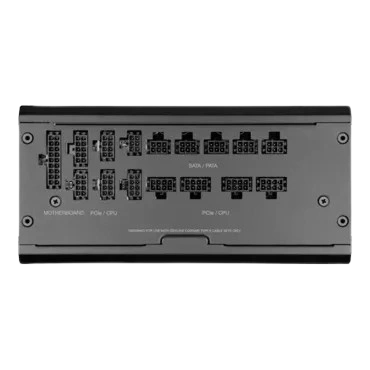

| Modular Design | Fully Modular (Type 5 Gen 1 Micro-Fit cables) |
| Fan | 1x 140mm Fluid Dynamic Bearing (FDB) fan with Zero RPM mode |
| Main Connector | 1x 24-pin ATX (20+4-pin) |
| CPU/EPS Connectors | 2x 8-pin (4+4-pin) EPS/ATX12V |
| PCIe Connectors | 1x 12+4-pin (12VHPWR) for PCIe 5.0 GPUs, 6x 6+2-pin PCIe |
| SATA Connectors | 16x SATA (4 per cable) |
| Peripheral (Molex) | 8x 4-pin PATA/Molex |
| +12V Rail | Single rail, 100A (1200W) |
| +5V / +3.3V Rails | Combined 150W (20A on each) |
| +5VSB | 3A / 15W |
| Dimensions | 180mm (L) × 150mm (W) × 86mm (H) |
| Weight | ~3.9 kg (8.6 lbs) |
| Warranty | 10 years |
| Key Features | Side-mounted modular panel, ATX 3.0 & PCIe 5.0 ready, 100% Japanese 105°C capacitors, Modern Standby support, Resonant LLC + DC-DC design |
