| Model | RM1000x (Available in 2021 & 2024/Shift variants) |
| Form Factor | ATX (Varies by version: ATX 2.4 to ATX 3.1) |
| Wattage | 1000W Continuous Power |
| Efficiency | 80 PLUS Gold Certified |
| Modularity | Fully Modular |
| Dimensions | 150 x 180 x 86 mm (Standard) |
| Cooling | 135mm Magnetic Levitation Fan |
| Special Mode | Zero RPM Fan Mode (Silent at low/medium loads) |
| Capacitors | 100% Japanese 105°C Electrolytic Capacitors |
| Warranty | 10 Years (Local availability varies by shop) |
Voltage Rails & Output
| Rail | Max Current | Max Power |
|---|---|---|
| +12V | 83.3A | 1000W |
| +5V | 20A | 150W (Combined) |
| +3.3V | 20A | 150W (Combined) |
| -12V | 0.8A | 9.6W |
| +5VSB | 3A | 15W |

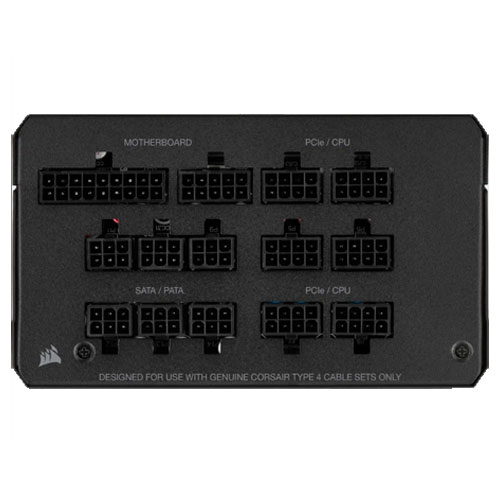

Connectors & Protection
| Connector Type | Quantity (Approx.) | Protection Features |
|---|---|---|
| 24-pin ATX | 1 | OCPÂ (Over Current) |
| 4+4 pin EPS (CPU) | 2 | OVPÂ (Over Voltage) |
| 12V-2×6 (PCIe 5.1) | 1 (on 2024/Shift models) | UVPÂ (Under Voltage) |
| 6+2 pin PCIe (GPU) | 4–8 (Depending on version) | OTP (Over Temperature) |
| SATA Power | 11–12 | SCP (Short Circuit) |
| 4-pin Peripheral | 6–8 | OPP (Over Power) |
