| CPU Support | Supports Intel® Core™ Ultra Processors (Series 2). |
| CPU Socket | LGA 1851. |
| Chipset | Intel® B860 Chipset. |
| Form Factor | Micro-ATX (mATX). |
| Memory | 4 x DDR5 DIMM slots, Dual Channel, max 256GB memory capacity, supporting speeds up to 8600+ MT/s (OC). |
| Power System | 12+1+1+1 Duet Rail Power System with P-PAK and 8+4-pin CPU power connectors for stable power delivery. |
| Warranty | Typically available with a 3-year manufacturer warranty. |
Expansion and Storage
| Component | Details |
|---|---|
| PCIe x16 Slots | 1 x PCIe 5.0 x16 slot (with Steel Armor), 1 x PCIe 4.0 x16 slot. |
| PCIe x1 Slots | 2 x PCIe 4.0 x1 slots. |
| M.2 Slots | 3 M.2 ports total: 1 x Gen5 x4 (128 Gb/s), 1 x Gen4 x4 (64 Gb/s), 1 x Gen4 x2 (32 Gb/s). |
| SATA Ports | 4 x SATA 6Gb/s ports. |
| RAID Support | Supports RAID 0, 1, 5, and 10 for SATA storage devices. |
Connectivity
| Type | Details |
|---|---|
| LAN | Realtek® 8126 5Gbps LAN controller. |
| Wireless | Intel® Wi-Fi 7 (802.11be, supports 2.4/5/6GHz bands with 320MHz channels) and Bluetooth® 5.4. |

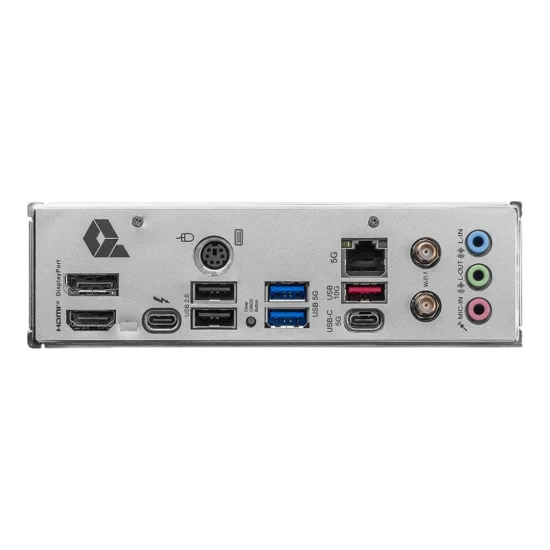

| Rear I/O Ports | 1 x Thunderbolt™ 4 (Type-C, 40Gbps with 8K display support), 1 x HDMI™ 2.1, 1 x DisplayPort 1.4, multiple USB Type-A and Type-C ports, 5G LAN port, Wi-Fi/Bluetooth antenna connectors, audio connectors, and a Clear CMOS button. |
| Internal USB | Front panel headers for a variety of USB ports, including 1 x USB 10Gbps Type-C port. |
Audio & Cooling
- Audio: 8-Channel (7.1) HD Audio with Audio Boost technology via a Realtek® ALC897 Codec.
- Cooling Features: Extended Heatsink design, 7W/mK MOSFET thermal pads, M.2 Shield Frozr II (heatsinks for M.2 SSDs), and multiple fan headers with Frozr AI Cooling support.
