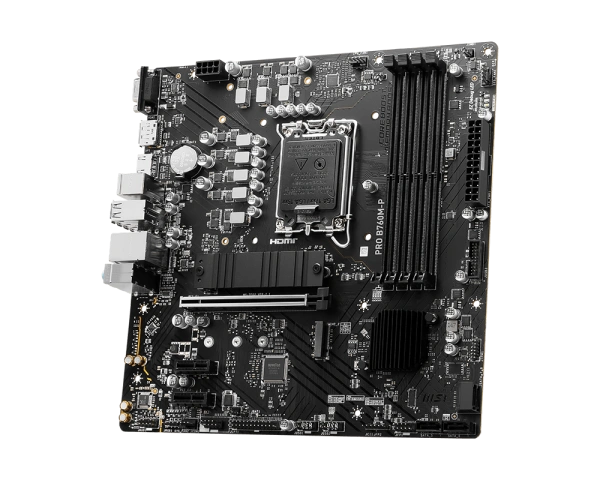

| CHIPSET |
|
INTEL B760 |
|
|
|
| CPU SUPPORT |
|
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
|
|
LGA 1700 |
|
|
|
| MEMORY |
|
| 4x DDR5, Maximum Memory Capacity 192GB |
|
|
|
| Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
|
|
|
1DPC 1R Max speed up to 6800+ MHz |
|
|
1DPC 2R Max speed up to 6400+ MHz |
|
|
2DPC 1R Max speed up to 6000+ MHz |
|
|
2DPC 2R Max speed up to 5600+ MHz |
|
|
| Supports Intel® XMP 3.0 OC |
| Supports Dual-Controller Dual-Channel mode |
| Supports non-ECC, un-buffered memory |
|
|
|
|
|
|
|
|
|
|
| ONBOARD GRAPHICS |
|
| 1x HDMI™ |
| Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* |
| 1x VGA |
| Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| EXPANSION SLOT |
|
| 1x PCI-E x16 slot |
| 1x PCI-E x1 slot |
| PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
| PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) |
|
|
|
PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
|
|
|
|
|
|
|
|
|
| STORAGE |
|
| 2x M.2 |
| M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| 4x SATA 6G |
| * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
|
|
|
|
|
|
|
|
|
|
|
|
|
| RAID |
|
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
|
|
| USB |
|
| 4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) |
| 1x USB 3.2 Gen1 Type A (Rear) |
| 2x USB 3.2 Gen1 Type A (Front) |
|
|
| 1x USB 3.2 Gen2 Type C (Rear) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| LAN |
|
Realtek® RTL8111H Gigabit LAN |
|
|
|
| AUDIO |
|
| Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio |
|
|
|
|
|
|
|
| INTERNAL I/O |
|
| 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) |
| 1x CPU Fan |
| 2x System Fan |
| 2x Front Panel (JFP) |
| 1x Chassis Intrusion (JCI) |
| 1x Front Audio (JAUD) |
| 1x Com Port (JCOM) |
1x RGB LED connector(JRGB)
| 1x TPM pin header(Support TPM 2.0) |
|
4x USB 2.0 ports |
|
|
|
2x USB 3.2 Gen1 Type A ports |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| OPERATING SYSTEM |
|
Support for Windows® 11 64-bit, Windows® 10 64-bit |
