| CPU Socket | AMD Socket AM5 |
| Chipset | AMD B650 |
| Form Factor | ATX (304.8 mm x 243.8 mm) |
| Memory | 4x DDR5 DIMM slots, dual-channel, max 192GB capacity |
| Memory Speed (OC) | Up to 7200+ MHz (OC) |
| Power Design | 12+2+1 Duet Rail Power System with dual 8-pin CPU power connectors |
| Expansion Slots | 2x PCIe 4.0 x16 slots (one runs in x4 mode), 1x PCIe 3.0 x1 slot |
| Storage | 2x M.2 Gen 4 x4 64Gbps slots, 4x SATA 6Gb/s ports |
| Networking | Realtek 2.5G LAN, AMD Wi-Fi 6E (802.11ax), Bluetooth 5.3 |

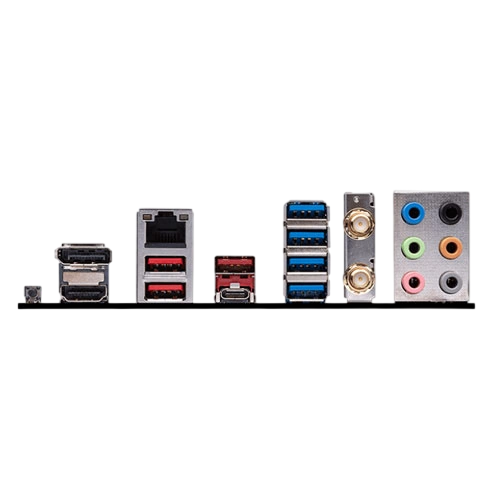

| Rear I/O Ports | 1x USB 3.2 Gen 2×2 Type-C (20Gbps), 3x USB 3.2 Gen 2 Type-A (10Gbps), 4x USB 3.2 Gen 1 Type-A (5Gbps), HDMI™ 2.1, DisplayPort 1.4, 2.5G LAN port, audio jacks, Flash BIOS button |
| Audio | Realtek ALC897 Codec, 7.1-Channel High Definition Audio with Audio Boost |
Key Features
- Enhanced Cooling: Features an Extended Heatsink design, M.2 Shield Frozr for SSD thermal management, and high-quality 7W/mK MOSFET thermal pads to ensure stable performance under heavy loads.
- High-Speed Connectivity: Offers a 2.5G LAN solution, Wi-Fi 6E, Bluetooth 5.3, and USB 3.2 Gen 2×2 Type-C ports delivering speeds up to 20Gbps.
- Durable Design: Built with a premium 6-layer PCB using 2oz thickened copper and PCIe Steel Armor slots to support heavy graphics cards and improve reliability.
- DIY Friendly: Includes features like the Flash BIOS Button for updating the BIOS without a CPU, memory, or graphics card installed, and EZ Debug LEDs for easy troubleshooting.
