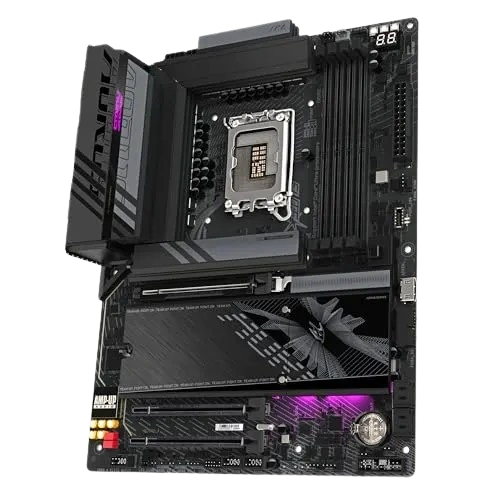

CPU & Chipset
-
Socket: LGA1851
-
Supported CPUs: Intel Core Ultra (Series 2)
-
Chipset: Intel Z890
Memory
-
Slots: 4 x DDR5 DIMM
-
Max Capacity: 256 GB
-
Speed: Up to 9200 MT/s (OC)
-
Supports: Dual-channel, ECC (non-ECC mode)
Graphics & Audio
-
Integrated Graphics: Intel HD (via CPU)
-
Ports: 1 x Thunderbolt 4 (USB-C), 1 x HDMI 2.1, 1 x DisplayPort 1.2
-
Audio: Realtek ALC1220, 7.1-channel HD Audio
Expansion & Storage
-
PCIe Slots: 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x4
-
M.2: 4 x M.2 (1 x PCIe 5.0 x4, 3 x PCIe 4.0 x4)
-
SATA: 4 x SATA III (6 Gb/s), RAID 0/1/5/10
Connectivity
-
Wi-Fi & Bluetooth: Wi-Fi 7 (802.11be), Bluetooth 5.4
-
LAN: 2.5GbE
-
USB:
-
Back: 1 x Thunderbolt 4, 2 x USB 3.2 Gen 2, 3 x USB 3.2 Gen 1, 4 x USB 2.0
-
Internal: 1 x USB 3.2 Gen 2 Type-C, 2 x USB 3.2 Gen 1, 4 x USB 2.0
-
Power & Form Factor
-
Form Factor: ATX (30.5 × 24.4 cm)
-
Power Connectors: 24-pin ATX, 8+8-pin EPS
-
VRM: 16+1+2 Phase Twin Digital VRM
-
Features: EZ-Latch Plus, Q-Flash Plus, WIFI EZ-Plug
