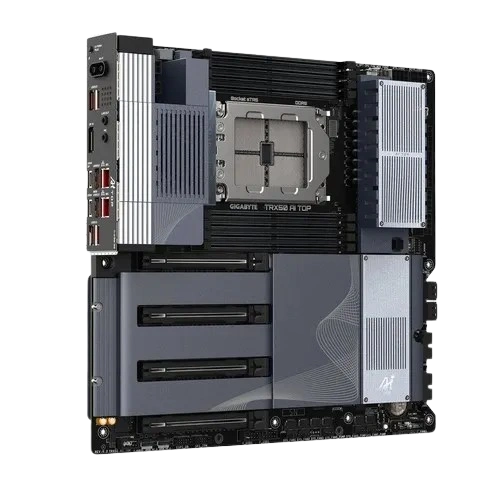

CPU & Chipset
-
Socket: sTR5 (LGA 4844)
-
Supported CPUs: AMD Ryzen Threadripper PRO 7000/9000, Ryzen Threadripper 7000/9000 Series
-
Chipset: AMD TRX50
Memory
-
Slots: 8 x DDR5 DIMM (ECC Registered RDIMM/RDIMM-3DS)
-
Max Capacity: 2 TB
-
Speed: Up to 8000 MT/s (OC), supports AMD EXPO™
-
Architecture: 8-channel (PRO CPUs), quad-channel (non-PRO)
Graphics & Audio
-
Integrated Graphics: No (requires discrete GPU)
-
Ports: 2 x USB4 Type-C (40 Gbps, DisplayPort Alt Mode)
-
Audio: Realtek ALC4080 + ALC897, DTS:X® Ultra
Expansion & Storage
-
PCIe Slots: 4 x PCIe 5.0 x16 (full-length, UD Slot X)
-
M.2: 4 x PCIe 5.0 x4 (2280, M key)
-
SATA: 4 x SATA III (6 Gb/s)
Connectivity
-
Wi-Fi & Bluetooth: Wi-Fi 7 (802.11be), Bluetooth 5.3
-
LAN: Dual Marvell AQtion AQC113C 10GbE (10/5/2.5/1 Gbps)
-
USB:
-
Back: 6 x USB 3.2 Gen 2 (red), 2 x USB4 Type-C
-
Internal: 1 x USB 3.2 Gen 2×2 Type-C, 2 x USB 3.2 Gen 1, 4 x USB 2.0
-
Power & Form Factor
-
Form Factor: E-ATX (30.5 × 33.0 cm)
-
Power Connectors: 24-pin ATX, dual 8-pin EPS, 4 x 8-pin PCIe
-
VRM: 16+8+4 Phase Digital VRM (110A Smart Power Stages)
-
Cooling: VRM Thermal Armor Advanced, M.2 Thermal Guard, 7 W/mK thermal pad
-
Features: Q-Flash Plus, EZ-Latch Plus/Click, PCIe UD Slot X, AI TOP Utility, UC BIOS
