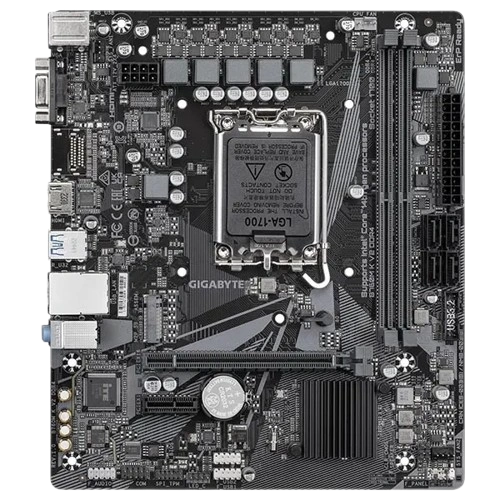

CPU & Chipset
-
Socket: LGA1700
-
Supported CPUs: 14th, 13th, and 12th Gen Intel Core, Pentium Gold, Celeron
-
Chipset: Intel B760 Express
Memory
-
Slots: 2 x DDR4 DIMM
-
Max Capacity: 64 GB (32 GB per DIMM)
-
Speed: Up to 3200 MT/s
-
Supports: Dual-channel, ECC (non-ECC mode), XMP
Graphics & Audio
-
Integrated Graphics: Intel HD (via CPU)
-
Ports: 1 x D-Sub (1920×1200@60 Hz), 1 x HDMI 2.1 (4096×2160@60 Hz, HDCP 2.3)
-
Audio: Realtek Audio CODEC, 7.1-channel HD Audio
Expansion & Storage
-
PCIe Slots: 1 x PCIe 4.0 x16 (CPU), 1 x PCIe 3.0 x1 (chipset)
-
M.2: 1 x PCIe 3.0 x4 (2280/2260)
-
SATA: 4 x SATA III (6 Gb/s), RAID 0/1/5/10
Connectivity
-
LAN: Realtek GbE (1 Gbps) with bandwidth management
-
USB:
-
Back: 2 x USB 3.2 Gen 1, 4 x USB 2.0
-
Internal: 2 x USB 3.2 Gen 1, 4 x USB 2.0 headers
-
Power & Form Factor
-
Form Factor: Micro ATX (22.3 × 19.3 cm)
-
Power Connectors: 24-pin ATX, 8-pin EPS
-
VRM: 4+1+1 Hybrid Digital VRM
-
Fan Headers: 1 x CPU, 2 x system (Smart Fan 6 with FAN STOP)
-
BIOS: 128 Mbit UEFI, supports Q-Flash
