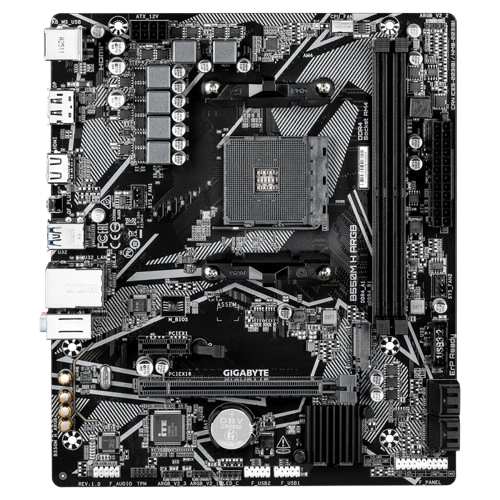

CPU & Chipset
-
Socket: AM4
-
Supported CPUs: AMD Ryzen 5000, 4000 G-Series, 3000 Series
-
Chipset: AMD B550
Memory
-
Slots: 2 x DDR4 DIMM
-
Max Capacity: 64 GB (32 GB per DIMM)
-
Speed: Up to 5100 MT/s (OC), supports XMP and AMD EXPO
-
Supports: Dual-channel, ECC (non-ECC mode)
Graphics & Audio
-
Integrated Graphics: AMD Radeon (via CPU)
-
Ports: 1 x DisplayPort 1.4 (5120×2880@60 Hz), 1 x HDMI 2.1 (4096×2160@60 Hz)
-
Audio: Realtek Audio CODEC, 7.1-channel HD Audio
Expansion & Storage
-
PCIe Slots: 1 x PCIe 4.0 x16 (CPU), 1 x PCIe 3.0 x1 (chipset)
-
M.2: 1 x PCIe 4.0 x4 (2280, M key, CPU-connected)
-
SATA: 4 x SATA III (6 Gb/s), supports RAID 0/1/10
Connectivity
-
LAN: Realtek GbE (1 Gbps)
-
USB:
-
Back: 4 x USB 3.2 Gen 1, 2 x USB 2.0
-
Internal: 1 x USB 3.2 Gen 1, 2 x USB 2.0 headers
-
-
Back Panel: PS/2, HDMI, DisplayPort, RJ-45, 3 x audio jacks, Q-Flash Plus button
Power & Form Factor
-
Form Factor: Micro ATX (23.3 × 19.8 cm)
-
Power Connectors: 24-pin ATX, 8-pin EPS
-
Fan Headers: 1 x CPU, 2 x system (Smart Fan 6 with FAN STOP)
-
RGB Headers: 3 x Addressable Gen2 LED, 1 x RGB LED
-
BIOS: 128 Mbit UEFI, supports Q-Flash Plus (BIOS update without CPU/GPU)
