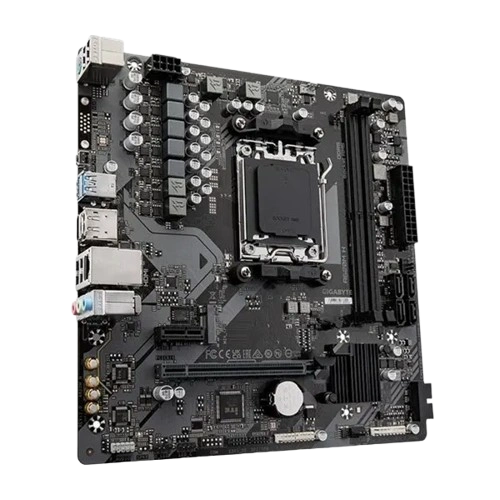

Socket: AM5
-
Supported CPUs: AMD Ryzen 7000, 8000, and 9000 Series
-
Chipset: AMD A620
Memory
-
Slots: 2 x DDR5 DIMM
-
Max Capacity: Up to 96 GB (48 GB per DIMM)
-
Speed: Up to 7200 MT/s (OC), supports AMD EXPO™ and Intel XMP
-
Architecture: Dual-channel, non-ECC unbuffered
Graphics & Audio
-
Integrated Graphics: Via CPU (Ryzen with Radeon Graphics)
-
Ports: 1 x DisplayPort 1.4 (3840×2160@144 Hz), 1 x HDMI 2.1 (4096×2160@60 Hz)
-
Audio: Realtek ALC897, 7.1-channel HD Audio
Expansion & Storage
-
PCIe Slots: 1 x PCIe 4.0 x16 (CPU), 1 x PCIe 3.0 x1 (chipset)
-
M.2: 1 x PCIe 4.0 x4 (2580, M key, CPU-connected)
-
SATA: 4 x SATA III (6 Gb/s), supports RAID 0/1/10
Connectivity
-
LAN: Realtek GbE (1 Gbps) with bandwidth management
-
USB:
-
Back: 2 x USB 3.2 Gen 1, 4 x USB 2.0, 1 x PS/2 combo
-
Internal: 1 x USB 3.2 Gen 1, 2 x USB 2.0 headers
-
Power & Form Factor
-
Form Factor: Micro ATX (23.0 × 22.5 cm)
-
Power Connectors: 24-pin ATX, 8-pin EPS
-
Fan Headers: 1 x CPU, 2 x system (Smart Fan 6 with FAN STOP)
-
RGB Headers: 1 x Addressable LED, 1 x RGB LED
-
BIOS: 256 Mbit UEFI, supports Q-Flash Plus (BIOS update without CPU/GPU)
