Core Specifications
-

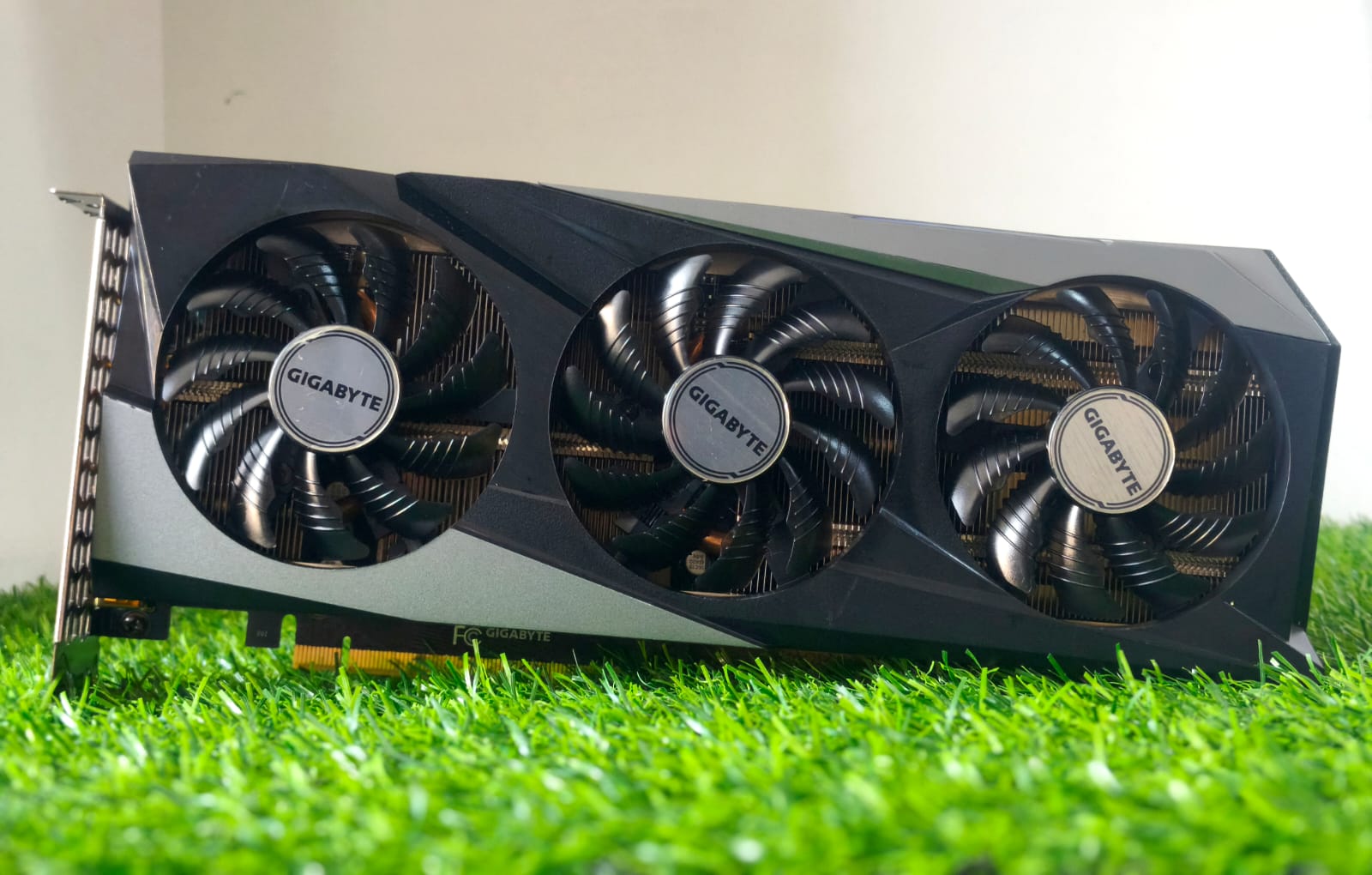

Model: GV-N3060GAMING OC-12GD (Rev 1.0 / Rev 2.0)
-
GPU: NVIDIA GeForce RTX 3060
-
Architecture: NVIDIA Ampere
-
CUDA Cores: 3584
-
Base Clock: 1320 MHz
-
Boost Clock: 1837 MHz (OC model)
-
TDP: 170 W
-
Power Connector: 1 x 8-pin PCIe
-
Recommended PSU: 550 W
-
Interface: PCI Express 4.0 x16
Memory
-
Memory Size: 12 GB
-
Memory Type: GDDR6
-
Memory Interface: 192-bit
-
Memory Speed: 15 Gbps (15000 MHz)
-
Memory Bandwidth: 360 GB/s
Cooling & Design
-
Cooling System: WINDFORCE 3X with 3x 80mm fans
-
Fan Design: Alternate spinning to reduce turbulence
-
Features: 3D Active Fan (semi-passive mode), graphene nano lubricant
-
Back Plate: Reinforced metal for structural support
-
RGB Lighting: RGB Fusion 2.0 with 16.7 million color options
-
Form Factor: Dual-slot, ATX
-
Dimensions: 282 x 117 x 41 mm (LxWxH)
Display Outputs
-
HDMI: 2 x HDMI 2.1
-
DisplayPort: 2 x DisplayPort 1.4a
-
Max Resolution: 7680 x 4320 @ 60 Hz
-
Multi-Display Support: Up to 4 monitors
Additional Features
-
Ray Tracing & DLSS: 2nd Gen RT Cores, 3rd Gen Tensor Cores
-
API Support: DirectX 12 Ultimate, OpenGL 4.6, Vulkan
-
VR Ready: Yes
-
Software: AORUS Engine for overclocking and monitoring
-
Use Case: 1080p–1440p gaming, ray tracing, content creation, streaming
