| GPU (Graphics Processing Unit) | NVIDIA GeForce RTX 5060 |
| GPU Architecture | Blackwell |
| CUDA Cores | 3,840 Units |
| Core Clocks (Boost) | Up to 2625 MHz (2640 MHz in MSI Center Extreme Performance mode) |
| Memory | 8 GB GDDR7 |
| Memory Interface | 128-bit |
| Memory Speed (Effective) | 28 Gbps |
| Memory Bandwidth | 448 GB/s |
| Interface | PCI Express Gen 5 x16 (operates at x8 speed) |
| TDP (Power Consumption) | 155 W |
| Recommended PSU | 550 W |
| Card Dimensions | 248 x 135 x 41 mm (Length x Width x Height) |
Ports
The card is equipped with multiple ports supporting high-resolution and high-refresh-rate displays.
- DisplayPort: 3 x DisplayPort 2.1b
- HDMI: 1 x HDMI 2.1b
- Maximum Digital Resolution: Up to 7680 x 4320 pixels (8K)
- Maximum Displays: Supports up to 4 simultaneous displays
Features

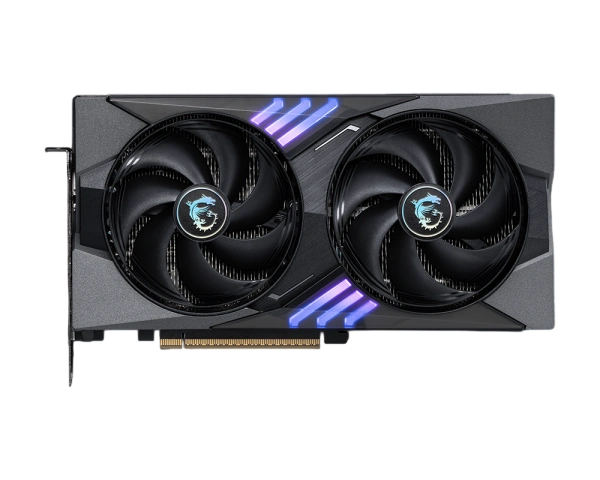

The MSI GeForce RTX 5060 Gaming OC includes several custom MSI features and leverages NVIDIA’s latest technologies.
- TWIN FROZR 10 Cooling: MSI’s custom thermal design for superior cooling performance and quiet operation.
- STORMFORCE Fans: Features a dual-fan setup with special fan blade design (seven blades with a claw texture) to concentrate airflow and reduce noise. The fans also support a Zero Frozr mode, stopping completely under low load for silent operation.
- Advanced Heat Management: A nickel-plated copper baseplate and square-shaped Core Pipes maximize contact with the GPU and memory to rapidly dissipate heat across the heatsink.
- Reinforced Metal Backplate: A sturdy backplate enhances the card’s structural integrity and includes thermal pads and airflow vents for passive cooling.
- NVIDIA Blackwell Architecture: The underlying architecture provides significant performance improvements over the previous generation, especially in ray tracing and AI tasks.
- NVIDIA DLSS 4: The latest suite of AI-powered rendering technologies, including Super Resolution, Ray Reconstruction, and Multi Frame Generation, to boost frame rates and image quality.
- NVIDIA Reflex 2: Optimizes the graphics pipeline for lower system latency, providing faster responsiveness in competitive games.
- NVIDIA Studio & Broadcast: Includes acceleration for creative apps and AI-enhanced voice/video features for streamers and content creators.
- DirectX 12 Ultimate & OpenGL 4.6 Support: Ensures compatibility with the latest games and applications.
- G-SYNC Support: Synchronizes display refresh rates with the GPU for a tear-free and smooth gaming experience.
