Core Specifications
-

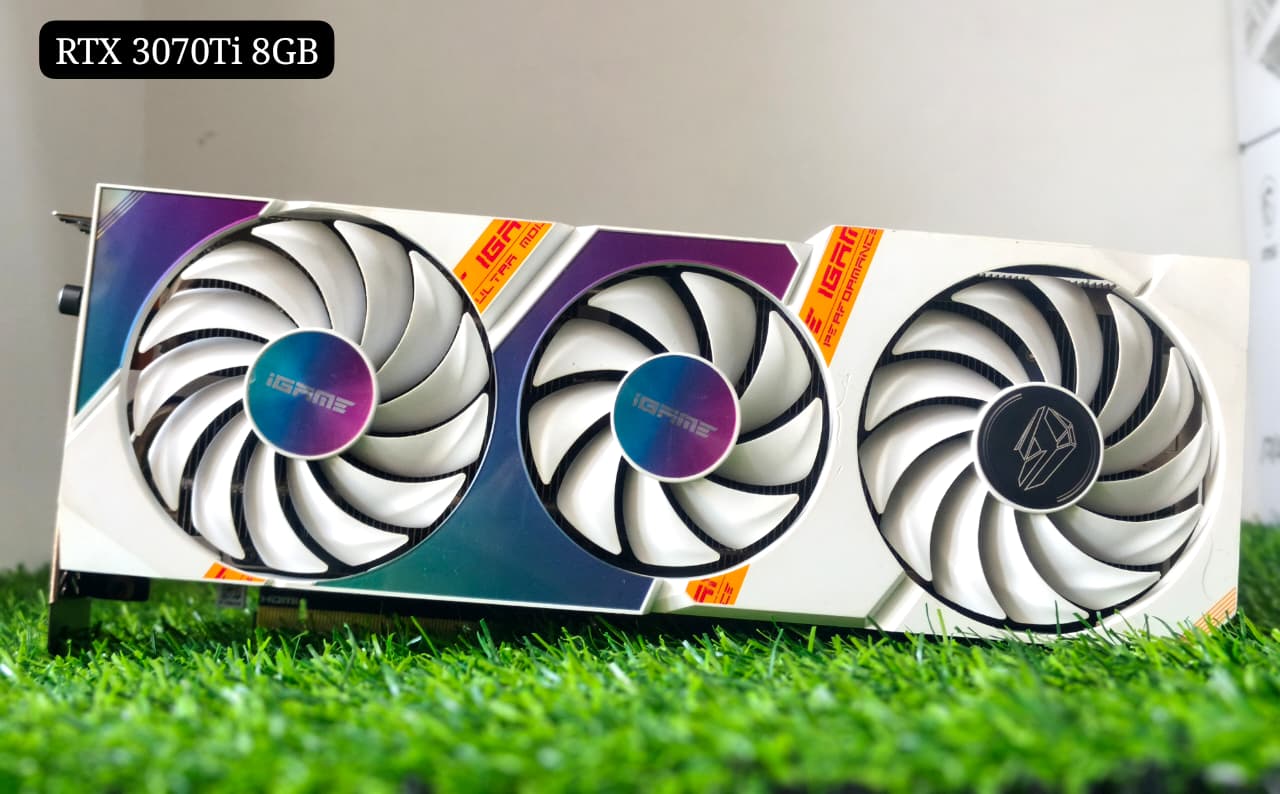

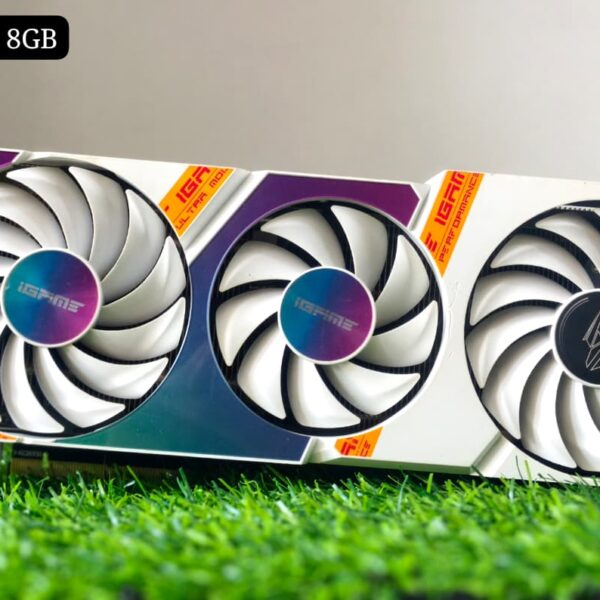

Model: iGame GeForce RTX 3070 Ti Ultra W OC 8G-V / Vulcan OC 8G-V
-
GPU: NVIDIA GeForce RTX 3070 Ti
-
Architecture: NVIDIA Ampere (GA104 GPU)
-
CUDA Cores: 6144
-
Base Clock: 1575 MHz
-
Boost Clock: 1770 MHz (up to 1860 MHz in OC mode)
-
TDP: 310 W
-
Power Connector: 2 x 8-pin PCIe
-
Recommended PSU: 750 W or higher
-
Interface: PCI Express 4.0 x16
Memory
-
Memory Size: 8 GB
-
Memory Type: GDDR6X
-
Memory Interface: 256-bit
-
Memory Speed: 19 Gbps
-
Memory Bandwidth: 608 GB/s
Cooling & Design
-
Cooling System: Triple-fan WINDFORCE (Ultra W) or advanced vapor chamber (Vulcan)
-
Features: Auto-stop fans, reinforced metal backplate, vacuum copper plate for heat dissipation
-
Form Factor: 2.5–3 slots
-
Dimensions: ~310–323 x 131.5 x 60 mm
-
RGB Lighting: iGame logo with customizable lighting
-
LCD Screen: On Vulcan model (adjustable, displays system stats or custom images)
Display Outputs
-
HDMI: 1 x HDMI 2.1
-
DisplayPort: 3 x DisplayPort 1.4a
-
Max Resolution: 7680 x 4320 @ 60 Hz
-
Multi-Display Support: Up to 4 monitors
Additional Features
-
Ray Tracing & DLSS: 2nd Gen RT Cores, 3rd Gen Tensor Cores
-
Overclocking: One-key OC button (boosts to 1860 MHz)
-
Software: iGame Center for tuning, RGB, and screen customization
-
Use Case: Excellent for 1440p gaming, capable at 4K with DLSS
-
Unique Feature: Vulcan model includes an LCD screen for real-time monitoring or personalization
